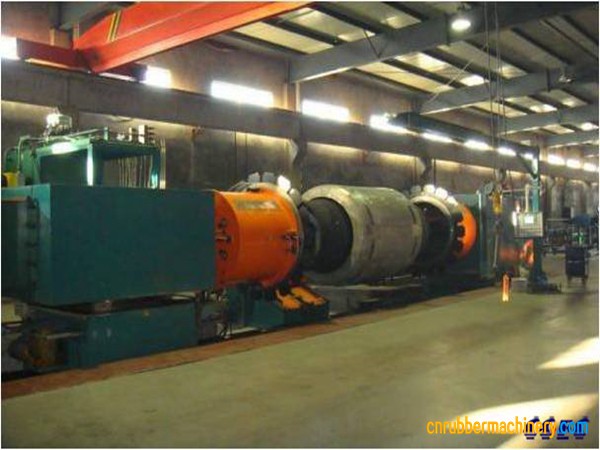

● 貼合鼓參數Ply-up drum parameter:
工作直徑 Working diameter:
輪胎規格 Tyre size: 51”
收縮直徑 Shrinkage diameter: φ1136mm
貼合直徑Fit diameter:φ1360mm
工作寬度 Working width：3500mm
（貼合鼓寬度Ply-up drum width：4500mm）
貼合鼓轉速Ply-up drum revolving speed：max60RPM
貼合鼓可自動設定各膠部件的貼合位置，可將各部件接頭錯開。
Ply-up drum can preset automatically the ply-up position and
offest the joints of various parts
● 內襯層寬度 Inner width:2300~ mm
● 胎體簾布寬度Carcass cord width: 3500~ mm
● 尼龍加強層寬度：Nylon strength part width:180~ mm
● 鋼絲簾布加強層寬度：Steel cord fabric strength part width：
135～ mm
● 內襯層、胎體簾布工字輪料卷最大直徑
Max. dia. of inner, carcass cord fabric bobbin scroll: Φ800mm
● 內襯層、胎體簾布料卷卷軸的內孔
The bore of reel for Inner,carcass cord fabric：78×78mm
● 內襯層、胎體簾布墊布卷軸最小直徑
Min. dia. of reel for inner, carcass cord fabric：Φ125mm
● 內襯層、胎體簾布墊布卷軸內孔
The bore of reel for Inner, carcass cord fabric placemat ：40×40mm
● 尼龍加強層等膠部件料卷最大直徑
Max. dia. of the part of Nylon strength part scroll：400mm
● 尼龍加強層等膠部件木軸直徑 Diameter of reel for Nylon strength part：120mm
● 木軸方孔直徑The bore of woodern reel ：40×40mm
●帶束層寬度Belt width:400~880mm
● 帶束層夾膠的寬度Belt doubling width：300~700mm
● 胎側的寬度sidewall width: 300~700mm
● 帶束層工字輪料卷最大直徑
Max. dia. of belt scroll: Φ1000mm
● 帶束層夾膠卷軸料卷最大直徑
Max. dia. of belt doubling scroll:Φ800mm
● 料卷卷軸的內孔the bore of reel for belt:40×40mm
● 墊布卷軸最小直徑
Min. dia. of reel for belt: 125mm
● 墊布卷軸內孔The bore of reel for belt :40×40mm
